Cable with connector for EV DC charger / discharger

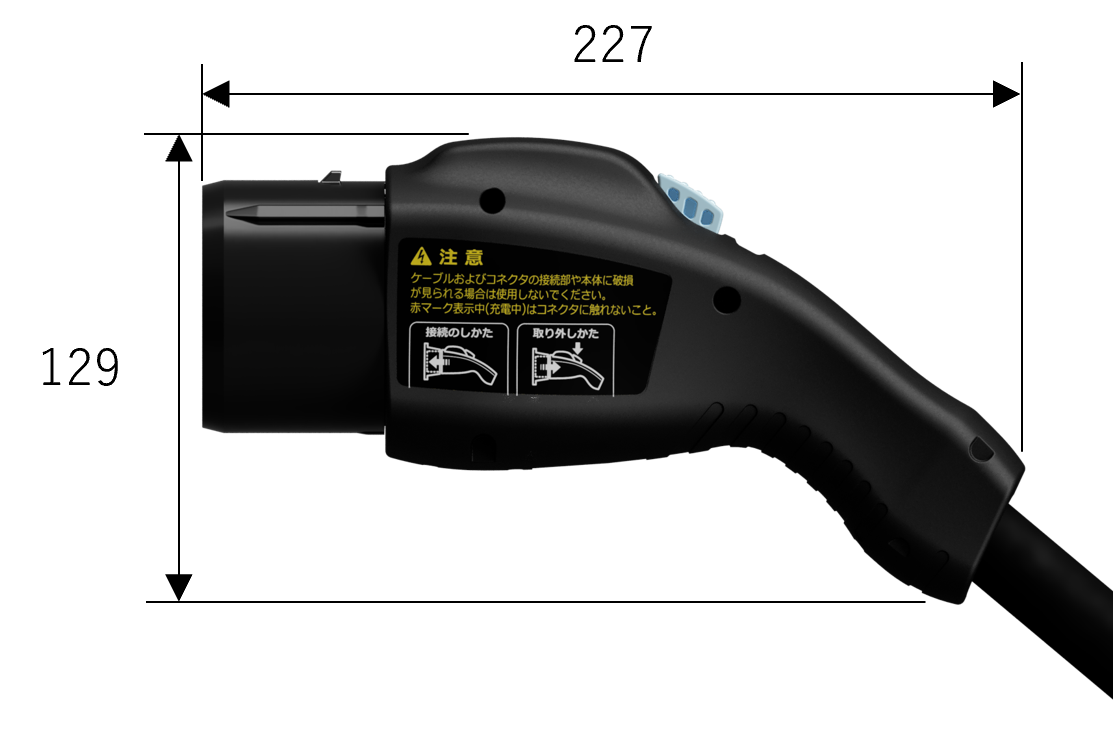

SEVD®-V3
The SEVD®-V3 is a connector suitable for V2H (Vehicle to Home) and V2X applications. It was developed and commercialized to be more compact and lightweight than other models. Additionally, the SEVD®-V3F, uses heat-resistant vinyl cabtyre cables (VCT), offering high flexibility not only at normal temperatures but also in low-temperature conditions.
Main part
Operation Procedures
Instruction for Mating to the Car inlet
1. Mate the connector to the automobile.
2. Insert it firmly and check that it does not come off, then the connection is complete.
How to remove
1. Confirm that the Red mark is disappears on the electromagnetic lock display.
2. Push the release button forward and pull out the connector
Specification
| Model number | for V2H(Vehicle to Home) and V2X | SEVD®-V3 | SEVD®-V3F |
| Rated current | Power (DC500V) | 25A (35.5A FUSE) | |
| Dimensions |  Unit : mm | ||
| Main body | Weight (kg) | Approx. 0.6 | |
| Material | Main body：Resin Latch：Metal Release button：Resin | ||
| Cable | Diameter (mm) | Approx. φ20 | Approx. φ22 |
| Weight (kg/m) | Approx. 0.52 | Approx. 0.55 | |
| Power conductor size (mm²) | 3.5 | 3.5 | |
