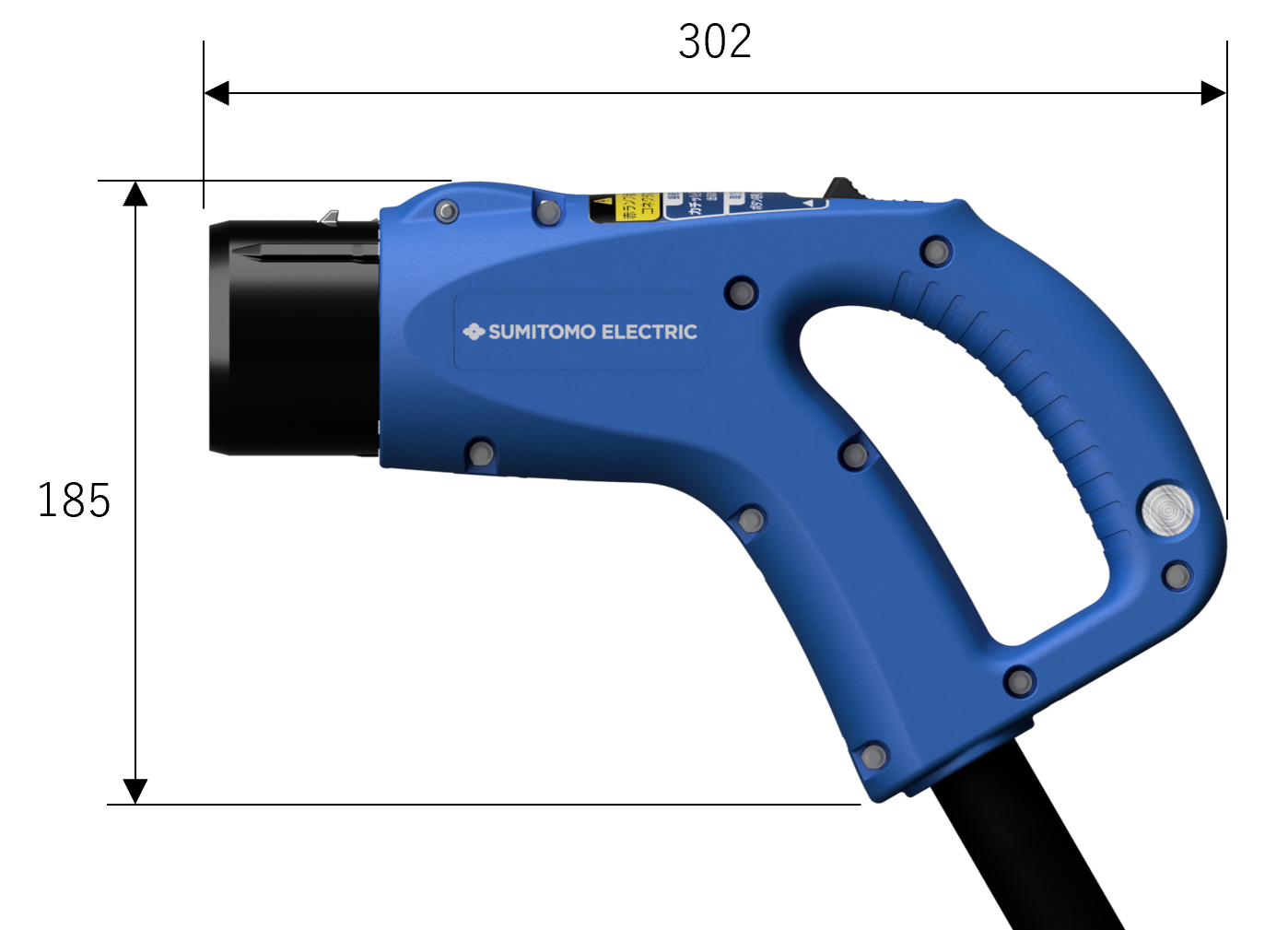

Cable with connector for EV DC charger / discharger
SEVD™-02
Main part
Operation Procedures
Instruction for Mating to the Car inlet
1. Mate the connector to the automobile.
2. Change from "Red mark" to "OK mark", connection completed
How to remove
1. Confirm that the LED light is off
2. Push the release button forward and pull out the connector
Specification
| Model number | DC quick charger for EV |
SEVD™-02 | SEVD™-02E (CE) |
SEVD™-02U (UL) |
SEVD™-02M | SEVD™-02ME (CE) |
SEVD™-02MU (UL) |
| Rated current | Power (DC500V) |
125A | 60A | 80A | |||
| Dimension |  Unit : mm |
||||||
| Connector | Weight | Approx. 0.8 | |||||
| Material | Main body：Resin Latch：Metal Release button：Resin |
||||||
| Cable | Diameter (mm) | Approx. φ29 |
Approx. φ29 |
Approx. φ32 |
Approx. φ26 |
Approx. φ27 |
Approx. φ30.5 |
| Weight (kg/m) | Approx. 1.46 |
Approx. 1.45 |
Approx. 1.57 |
Approx. 1.07 |
Approx. 1.14 |
Approx. 1.29 |
|
| Power Conductor Size (mm²) |
38 | 35 | 33.6 | 22 | 25 | 21.2 | |
